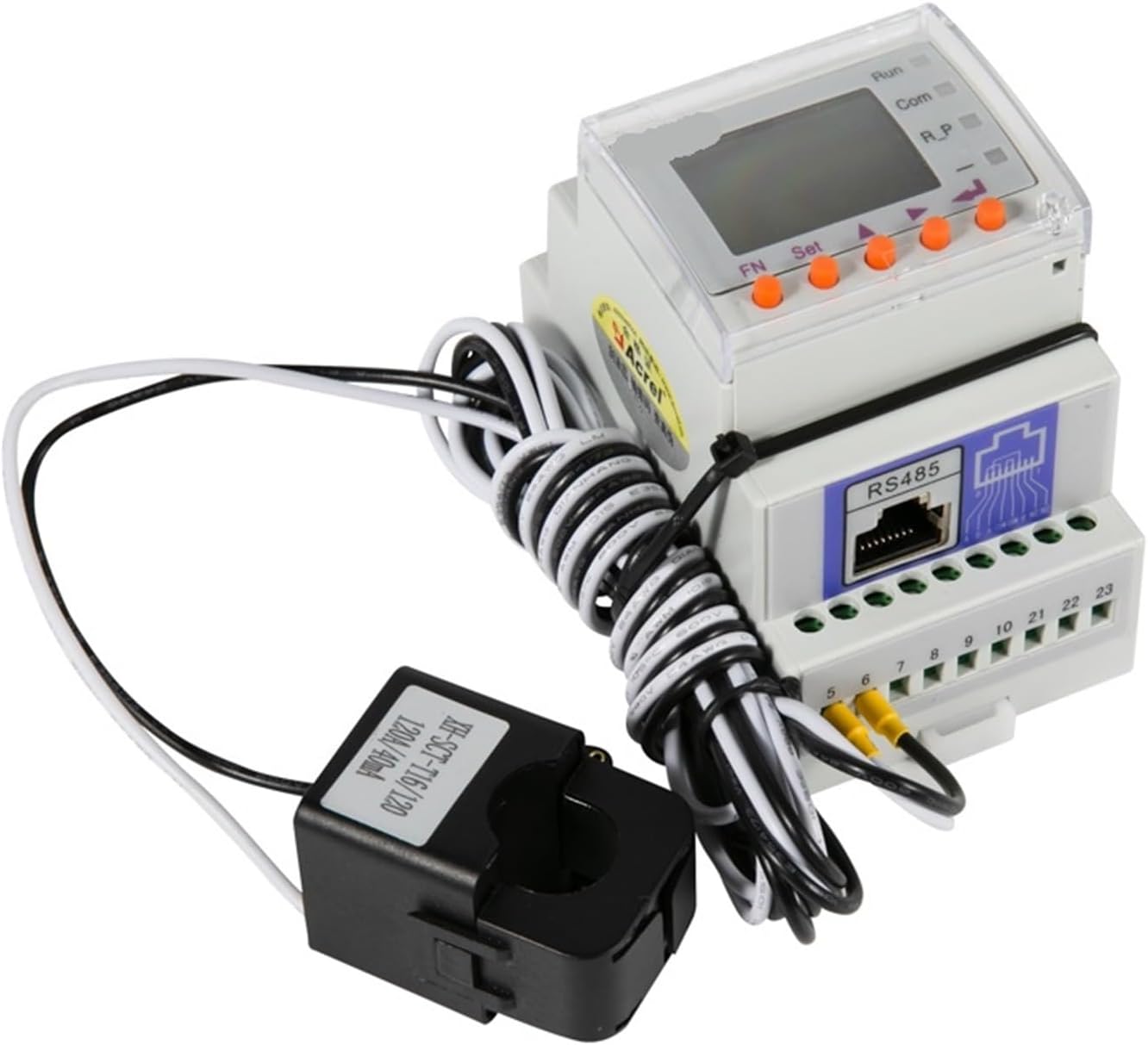

ACR10R-D16 Bidirectional Single-Phase Energy Meter(Input 80A)
Product details
| Management number | 222673426 | Release Date | 2026/05/04 | List Price | US$147.67 | Model Number | 222673426 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Meter SocketsACR10R-D16 Bidirectional Single-Phase Energy Meter with 120A Split-Type CT RS485 Modbus-RTU Solar InverterCurrent rating: 10mm diameter, 80A (with external CT)16mm diameter, 120A (with external CT)24mm diameter, 200A (with external CT)36mm diameter, 300A (with external CT)Communication: RS485 (MODBUS-RTU)Applications: Using distributed solar photovoltaic and anti-reverse invertersDisplay: LCD screenInstallation method: 35mm DIN railPower supply: 85~265V AC or 100~350V DCStandards and Certificates (CE) Includes battery: Yes Dimensions: 85*64*54mmOperating temperature: -10~55℃Output voltage: 220V~264VAccuracy level: 1Energy measurement range: 0-99999.9 kWhNumber of phases: Single phaseModel: ACR10RRated voltage: 230VPower supply: Alternating currentDisplay type: LCDDIY supplies: electrical appliancesPlace of origin: Mainland ChinaCertification: CEMeasure: U, I, P, Q, S, PF, FInstallation method: 35mm DIN railProtocol: MODBUS-RTUDisplay screen: LCDFrequency: 45~60HzStandards and Certificates: CERated voltage: AC 100V, 400VInput: Single phaseCommunication: RS485 interfacePower consumption: less than 0.2VA
- Meter Sockets
| Color | One Color |
|---|---|
| Model | MCGQDLLMN-64D4CB17 |
| Brand Name | CCQIBTU |
| Part Number | MCGQDLLMN-64D4CB17 |
| Manufacturer | CCQIBTU |
